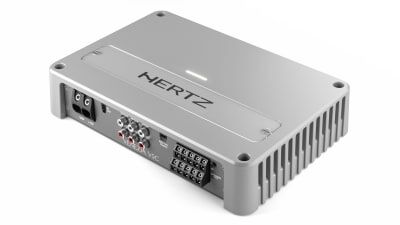

Hertz Marine VENEZIA V5C

OUTPUT POWER (RMS) @ 14.4 VDC, THD 1%
5Ch 80 W x 4 (4Ω) + 330 x 1 (4Ω)
5Ch 115 W x 4 (2Ω) + 550 W x 1 (2Ω)
3Ch 230 W x 2 (4Ω) + 330 W x 1 (4Ω)
3Ch 230 W x 2 (4Ω) + 550 W x 1 (2Ω)
Channels: 5 – 3
Power supply voltage: 9 – 16 VDC
Idling current (power ON/OFF): 1.7 A / 0.05 mA
Consumption@ 1Ω, 14.4 VDC (Max Musical Power): 47 A
Remote In: 7 – 15 VDC – 1 mA
Distortion – THD (100Hz @ 4Ω): <0,05%
Bandwidth: 10 – 42 kHz
S/N Ratlo (A weighted @ 1 V): 100 dB
Damping factor (100Hz @ 4Ω): >130
Pre-ln sensitivity: 0.2 – 5 VRMS
Pre-ln impedance: 10 kΩ
Load impedance (MIN):
@5Ch: 2Ω
@3Ch: 4Ω + 4Ω + 2Ω
Weight (kg/lb): 3.72 / 8.2
Adjustable Crossovers: yes
Inputs: A Ch. Pre in
B Ch.: Pre in
Sub Ch.: Pre in
Pre-Out: No
A Ch. filters: Yes
By-Pass: Yes
Hi-Pass : 50 – 500 Hz / 500 Hz – 5 kHz @ 12 dB/Oct
B Ch. filters:
By-pass: Yes
Hi-Pass: 50 – 500 Hz @ 12 dB/Oct
Band-Pass: 50 – 500 Hz / 500 Hz – 5 kHz @ 12 dB/Oct
Sub Ch. filters:
By-pass: No
Low-Pass: 50 – 250 Hz @ 24 dB/Oct
Phase (adjust°): (0 – 180°)
Subsonic: 25 Hz @ 24 dB/Oct
